Heavy Equipment

​​High Definition 10' x 24' Plasma Table up to 2" thick

CNC Drill Line for Plate, Angle, Tubing, and Beams up to 44”

2014 - 230 Ton Cincinnati CNC Press Brake

Saw Cutting 36" x 20" and 13" x 18"

Flame Cutting

   10' x 24' CNC Table

   Any size track burning

(4) Lincoln LT-7 SAW Tractors

Sub-Harmonic Stress Relief Equipment

475 Ton Custom Forming Press

Welding

   SAW / TIG / GMAW / FCAW, all materials

   Stud Welding, to 7/8"

Punching

   120 ton CNC plate and angle punch120 ton & 45 ton iron workers

   (2) 48 ton portable flange punch

Lifting Capacity

Overhead Cranes: (1) 10 ton / (2) 5 ton / (3) 3 ton / 20 ton combined

Fork Trucks: (2) 35,000lbs / (1) 15,000lbs / (1) 7,0000lbs



Newport Industrial Fabrication Facilities List

An overview of our capabilities
Buildings

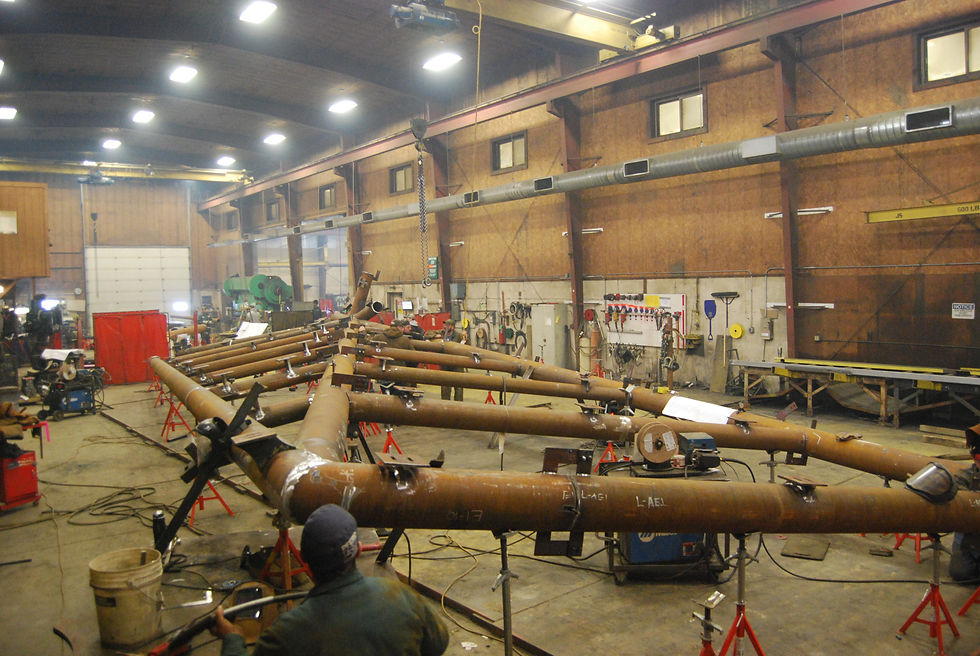

​​Fabrication Area: 18,000 ft2 / 21’ Under the hook

Coatings Facility: 17,000 ft2 / 16’x20’ Doors

Yard Space: 165 Acres / 16 Acres developed yard space

1/4
Finishing

​​Thermal transfer metalizing (TMS)

Plural paint application

Airless and conventional spray

Aeorlon insulation coatings

Sand Blasting

   Automated wheel blast - 48" x 16" capacity

   Grit blast area - 40' x 16' x 16'

   Grit blast enclosed room - 16' x 16' x 16'

All paint systems including: zinc, epoxy and polyurethane

Power brush cleaning and tumbling
